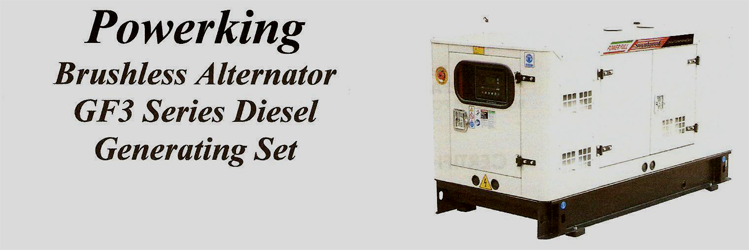

SPECIFICATION / DESCRIPTION |
| |
Model |
GF3-25KVA |
GF3-40KVA |
GF3-60KVA |
GF3-85KVA |
GF3-110KVA |
Cummins Main Specifications of Generator Set |
Standy Model |
C22 |
C33 |
C50 |
C75 |
C85 |
Standby Output (KW/KVA) |
22/27.5 |
33/41.25 |
55/68 |
75/94 |
88/110 |
Technical Data |
|
Diesel Engine Model |
4B3.9-G2 |
4BT3.9-G2 |
4BTA3.9-G2 |
6BT5.9-G2 |
6BT5.9-G2 |
| Engine Characters |
water cooled, in line, 4 stroke, direct injection, wet cylinder liner, 1500 rpm |
| Constant Output (KW) |
24 |
36 |
50 |
90 |
92 |
| Standby Output (KW) |
27 |
40 |
55 |
100 |
100 |
| Aspiration |
Natural |
Turbo |
Turbo & Aftercooled |
Turbo |
Turbo |
| Bore (mm) X Stroke (mm) |
102 X 120 |
| Cubic Capacity (Liters) |
3.19 |
5.9 |
| Compression Ration |
16.5:1 |
17.5:1 |
| Cooling System Volume (L) |
8 |
11 |
| Max Water Temp |
100 °C |
| Speed Charateristics |
The speed stability bandwidth <= +0.25% The steady governing rate <= 1% |
| Fuel Consumption |
<= 215g/KW.h |
| Lube Consumption (Prime) |
<= 1.36g/KW.h |
| Radiated Heat to Ambient (KWm) |
6 |
6 |
8 |
14 |
| Heat Rejection to Coolant (KWm) |
27 |
27 |
29 |
62 |
| Heat Rejection to Exhaust (KWm) |
38 |
38 |
41 |
69 |
| Fan Cooling Airflow (m3/h) |
6790 |
7470 |
| Intake Airflow (I/s) |
52 |
52 |
52 |
94 |
| Exhaust Gas Flow (m3/h) |
272 |
601 |
612 |
840 |
1020 |
| Exhaust Temp (°C) |
480 |
492 |
502 |
510 |
576 |
| Exhaust Back Pressure |
10kPa (Maximum) |
|
Alternator Model |
HYS-184F |
HYS-184H |
HYS-224E |
HYS-224G |
HYS-224C |
| Phase |
Single |
Single/Three |
Three |
Three |
Three |
| Continuous Output (KW) |
22 |
30 |
48 |
68 |
80 |
| Power Efficiency |
81% |
90% |
88.60% |
90.20% |
90.40% |
| Voltage Regulation |
±1.0% with 4% engine governing |
| Waveform Distortion |
No load < 1.5% and non-distorting balanced linear load <= 5% |
| THF/TIF |
< 2% / < 50 |
| Fan Cooling Airflow (I/s) |
216 |
514 |
|
 |
GREEN HOUSE
| MATERIALS |
| UV Treated PE Film, Clear White 0.15mm x 3.5m |
| Superfine Net 24 x24 mesh 3.6m x 100m |
| Black Straw Shade Net 30% Shade 2.50m x 30m |
| Spring Clip 1/2" x 1/2" |
| Plastic Net Clamp 1/2" diameter |
| Plastic Net Clamp 3/4" diameter |
| Steel Bar 12mm diameter |
| G.I. Pipe 1/2" diameter Sch. 20 |
| G.I. Pipe 3/4" diameter Sch. 20 |
| Acessories and Fittings |
| Strap, bolt and nuts, coupling, riverts, metal rings, |
| Aluminum Flat Bar, Tie Wire, etc. |
|
 |
DRIP IRRIGATION
| MATERIALS |
| Valve |
| Filter |
| PVC 25 mm diameter |
| PE Pipe 25mm diameter Mainline |
| HD Pipe 6 mm diameter Lateral with dripper |
| Connector and Accessories |
T connectors, Insert connector, Angle connector, |
| punch star connector for PVC, Punch start connector |
| for PE, 200 liters drum, etc... |
|
|
OVERHEAD TANK

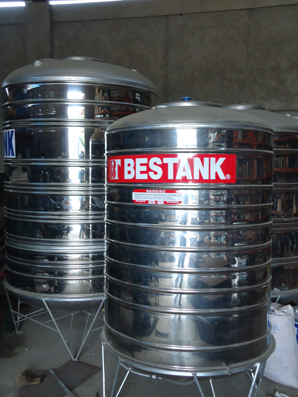

STAINLESS STEEL CYLINDRICAL WATER STORAGE TANK
SERIES BSTR (CYLINDRICAL ROUND BOTTOM)
|
APPROX. CAP. |
DIAMETER |
TOTAL HEIGHT |
Liters |
Gals |
cm |
inches |
cm |
inches |
240 |
240 |
64 |
65 |
25 1/2 |
106 |
41 3/4 |
340 |
340 |
90 |
65 |
25 1/2 |
135 |
53 |
400 |
400 |
105 |
76 |
30 |
130 |
51 |
480 |
480 |
125 |
76 |
30 |
145 |
57 |
500 |
500 |
132 |
70 |
28 |
176 |
69 |
600 |
600 |
160 |
76 |
30 |
176 |
69 |
775 |
784 |
206 |
85 |
33 1/2 |
176 |
69 |
800 |
800 |
210 |
97 |
38 |
153 |
60 |
1000 |
1000 |
260 |
97 |
38 |
183 |
72 |
1200 |
1168 |
309 |
105 |
41 |
185 |
73 |
1500 |
1500 |
400 |
105 |
41 |
210 |
82 |
1700 |
1700 |
450 |
123 |
48 |
190 |
75 |
2000 |
2000 |
526 |
123 |
48 |
221 |
87 |
2600 |
2651 |
700 |
142 |
56 |
221 |
87 |
3200 |
3228 |
853 |
142 |
56 |
252 |
99 |
3800 |
3797 |
1003 |
142 |
56 |
283 |
111 |
4000 |
3992 |
1055 |
170 |
67 |
221 |
87 |
4200 |
4222 |
1116 |
142 |
56 |
313 |
123 |
4600 |
4567 |
1207 |
170 |
67 |
252 |
99 |
5300 |
5259 |
1389 |
170 |
67 |
283 |
111 |
6000 |
5951 |
1572 |
170 |
67 |
313 |
123 |
6900 |
6919 |
1828 |
190 |
75 |
283 |
111 |
7700 |
7675 |
2028 |
190 |
75 |
313 |
123 |
8000 |
7982 |
2109 |
220 |
87 |
280 |
110 |
10500 |
10570 |
2793 |
220 |
87 |
340 |
134 |
12800 |
12880 |
3403 |
220 |
87 |
400 |
158 |
15000 |
15143 |
4000 |
220 |
87 |
465 |
183 |
all specifications stated above are on an approximate basis only
- AV-3 S/S Air Vent for Water Storage Tank
- Platic Air Vent for Water Storage Tank (blue)
LADDER FOR:
BSTR-240 to BSTR-1700
BSTR-2000 to BSTR-2600
BSTR-3200 and up
S/S LADDER FOR:
BSTR-240 to BSTR-1700
BSTR-2000
|
|

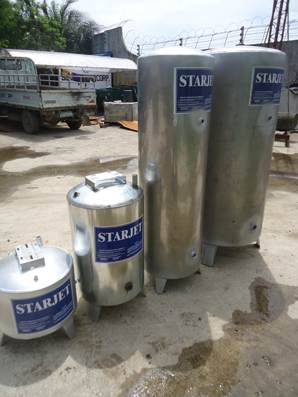

PRESSURE TANK
CAPACITY |
HEIGHT |
DIAMETER |
12 Gals |
10 5/8 " |
16 " |
21 Gals |
23 " |
16 " |
42 Gals |
48 " |
16 " |
82 Gals |
48 " |
23 " |
120 Gals |
48 " |
31 1/2 " |
220 Gals |
64 " |
31 1/2 " |
|
