SPECIFICATION / DESCRIPTION |
|

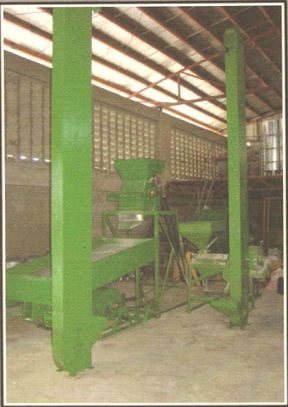

CORN MILL
Degerminator |
Abrasive Type |
Milling Unit |
Disc Type |
Milling Capacity |
50 - 150 Kgs / Hour |
Length |
1140 mm |
Width |
800 mm |
Height |
1260 mm |
Labor Requirements |
One Person |
Features |
- Compact and Portable
- Consist of a degerminator and pin-type milling assembly
- Replaceable milling screens to mill different sizes
- Constructed from locally available materials
|
|
 |

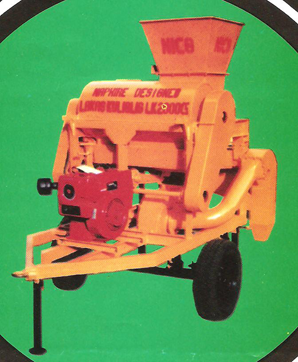

CORN SHELLER
| Model |
LK-2000 CS |
| Capacity / Hour |
2.5 - 4 Tons / Hour |
| Height |
2080 mm |
| Width |
1470 mm |
| Length |
2360 mm |
| Weight |
380 Kg |
| Engine |
14-66 HP Gasoline Engine, 11-12.5 Diesel Engine |
| Features |
- Portable Type: Provided with tires for easy mobility
- Higer percentage separation recovery: longer shelling drum ensures high separation recovery (99 - 100 %)
- Blower designed for air control for regulated blowing to seaparate clean shelled corn from fine wastes
- Provided with shaker to separate corn from cobs
- Low Labor Requirements: Only 4 men needed to feed shell and bag grain
- Simple operation and maintenance
- All steel construction
|
|
 |
DECORTICATING MACHINE
1 UNIT – Decorticating Machine, 1.2 to 2 tons per day capacity, powered by 25hp Electric Motor
|
|
HAND TRACTOR
Product Name |
SK-HANDTRACTOR |
Model |
SK-160 |
Overall Length |
2590 mm |
Overall Width |
1000 mm |
Overall Height |
1230 mm |
Weight w/o Engine |
123 Kgs |
Engine Type |
7-8 HP Diesel |
Field Capacity |
1 HA / Day |
Features |
- Safety construction on clutch linkage
- with shoe plate, mud protector
- with chain adjuster
- low labor requirements
- custom built for durability anf performance efficiency
- simple in operation and maintenance
- all steel construction
- export quality
|
|
|
POWER SPRAYER
| |
Accessories |
- 10 meter pressure hose
- spray gun
- overflow hose
- suction hose
- filter
- extra bushing
|
|
 |

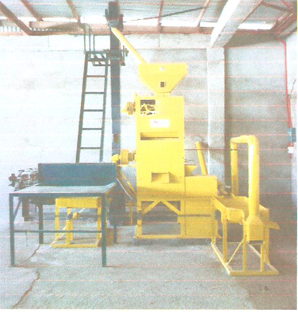

RICE MILL
| Model |
MDP 0.5 |
MDP 1.0 |
| Capacity (Output) |
10-15 cvs. rice/hr |
20-25 cvs. rice/hr |
| Rubber Size |
6 " |
6 " |
| Prime Mover |
4D30 |
4D32 |
| Space Requirement (LxWxH) |
10 x 8 x 12 |
10 x 8 x 12 |
|
 |
RICE THRESHER & THRESHER HUSKER SHELLER
Specification |
Rice Thresher |
Thresher Husker Sheller |
Model |
LK-300 |
LK-300 |
Width |
500 Kg |
540 Kg |
Height |
2130 mm |
2130 mm |
Weight |
1850 mm |
1850 mm |
Length |
2715 mm |
2715 mm |
Engines |
14-16 HP Gasoline Engine, 11-14 HP Diesel Engine |
14-16 HP Gasoline Engine, 11-14 HP Diesel engine |
|
Features
|
- very high separation recovery (99% up)
- Low labor requirement (5 man to feed, thress or shell and bag grain
- custom built for durability and performance efficiency
- easy towing for trailer mount. can be hitched to power tillers, jeep and carabaos
- for the portable version, threshing portion can be detached from the blower
- simple operation and maintenance
- all steel construction
- export quality
|
|
|
ROTARY DRYER
1 SET - Standard multi biomass furnace with heat exchanger coupled with rotary drum dryer, 30ft length, 56.75 inches diameter, 1:60 speed reducer 4 to 6 rpm, 1ton per hour capacity, auger type feeding mechanism
|
