SPECIFICATION / DESCRIPTION |
 |
GOULDS PUMPS
"G&L Pumps combines 150 years of pump experience with the most modern design and manufacturing systems - deep drawn metal fabrication, laser cutting, laser welding, precision casting, and worldwide design systems - plus a total commitment to quality based on full performance testing of every pump we make.
Whether you need stainless steel, bronze, or cast iron, multi-stage verticals or horizontals, end suction centrifugals or submersibles, there's a G&L Pumps design that's proven itself through years of dependable service. For booster service, liquid transfer, spray systems, water circulation, dewatering, light chemical and industrial applications, there's a G&L pump that's done long time duty. Horizontal and vertical multi-stage capacities from 5 gpm to 350 gpm. Submersible capacities from 5 gpm to 500 gpm. And end suction centrifugal capacities from 4 gpm to 5000 gpm. G&L Pumps - a brand offering the power of experience to more than 100 nations of the world. In addition to the standard pump designs shown here, we offer specialized O.E.M. pumps designed to meet the specifications of your particular needs."
- Goulds Pumps |
|
PADDLE WHEEL
• 2HP induction Motor, 3 Phase, 220 Volts
• Aluminum Casing, Fiber Glass Float
• with 2 heavy duty fully armed propeller
• with 15 meters submersible, 3 phase cable with magnetic connector
• 4 stainless lock rod 0.5" diameter
|
 |

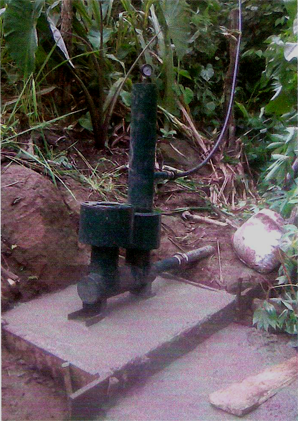

RAM PUMP
| MATERIALS |
| G.I. Pipe schedule 40 |
| Swing valve |
| Flange Joint |
| Anchor Bolt |
| Anglebar 2x3mm |
| Moving parts gasket |
| Lot accessories / welding rod |
|
| Pipes, fittings and accessories |
| 2” G.I Pipe |
| 2x1 G.I couplings |
| 2x1 reducer coupling |
| Portland cement |
| 10mm reinforced bar |
| #16 tie wire |
| 1 ¼ brass gate valve |
| 1 ft. x 1 ¼ G.I. Nipple |
| 8x1 ¼ G.I. Nipple |
| 1x1 ¼ G.I. Pipe |
| ¾” P.E. Pipe |
| 1 ¼ P.E. Coupling |
| 1 ¼ G.I. Coupling |
| ¾ G.I. Coupling |
| 1” Teflon Tape (big) |
| Class C, 5mm plywood |
| gravel (G-1) |
| Fresh sand |
| 2x2x8 coco lumber |
| Sahara Cement |
| Assorted sizes c.w. nails |
|
|
RING BLOWER
• Single Phase
• 0.5 HP, 220 Volts
• with Magnetic connector
• Taiwan Made
|
|
|
 |
CONTINUOUS PUMP FOR PONDS & FOUNTAINS
Heavy duty pump, with corrosion-resistant thermoplastic impeller, thermal overload protection, sus304 motor housing & shaft, and silicon mechanical seal.
|
MODEL |
HP |
DISCHARGE (in) |
MAX HEAD |
MAX CAPACITY |
PHASE |
H-100S |
100 W |
1" |
6.5 M / 21 FT |
0.09 M3/MIN, 24 GPM |
1 |
|
|
DEWATERING PUMP
APPLICATION:
(1) CIVIL ENGINEERING AND CONSTRUCTION
(2) HOUSEHOLD USE
(3) TUNNEL & CAISSON DRAINAGE
(4) AGRICULTURAL IRRIGATION
|
MODEL |
HP |
DISCHARGE (in) |
MAX HEAD |
MAX CAPACITY |
PHASE |
D-0521 |
1/2 |
2" |
12.5 M / 41 FT |
0.22 M3/MIN, 58 GPM |
1 |
D-1021 |
1 |
2" |
15 M / 49 FT |
0.35 M3/MIN, 92.4 GPM |
1 |
D-2031 |
2 |
3" |
18.5 M / 61 FT |
0.75 M3/MIN, 198 GPM |
1 |
D-3041 |
3 |
4" |
21 M / 69 FT |
1.1 M3/MIN, 290 GPM |
1 |
D-3043 |
3 |
4" |
21 M / 69 FT |
1.1 M3/MIN, 290 GPM |
3 |
|
|

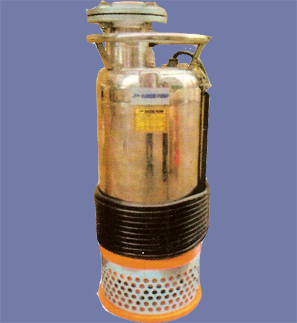

CONTRACTOR PUMP
Designed for Civil Engineering with double outer casing, double mechanical seal made of silicon carbide, and high chromy alloy steel impeller (hardness of 60Rc)
|
MODEL |
HP |
DISCHARGE (in) |
MAX HEAD |
MAX CAPACITY |
PHASE |
C-1521 |
1 1/2 |
2" |
20 M / 65 FT |
0.4 M3/MIN, 110 GPM |
1 |
C-2031 |
2 |
3" |
18 M / 60 FT |
0.6 M3/MIN, 160 GPM |
1 |
|
|
SEWAGE PUMP (VORTEX IMPELLER)
The vortex impeller produces a hydaulic passage through the pump for long fibrous material, without passing through the impeller and preventing potential clogging
APPLICATION:
(1) Agricultural Irrigation and Water Supply in Slope area
(2) Shallow Well
(3) Water Supplying System for apartment buildings
(4) Spraying of yard and garden
(5) Any kind of high head water supply
|
MODEL |
HP |
DISCHARGE (in) |
MAX HEAD |
MAX CAPACITY |
PHASE |
S-1021U |
1 |
2" |
15 M / 49 FT |
0.35 M3/MIN, 92.4 GPM |
1 |
S-2031U |
2 |
3" |
18.5 M / 61 FT |
0.75 M3/MIN, 198 GPM |
1 |
S-3031U |
3 |
3" |
21 M / 69 FT |
1 M3/MIN, 264 GPM |
1 |
S-3033U |
3 |
3" |
21 M / 69 FT |
1 M3/MIN, 264 GPM |
3 |
|
|
SEWAGE PUMP (SEMI-OPEN IMPELLER)
Semi-open Impeller embedded with a tungsten blade to enable cutting of fibrous material to prevent clogging on higher disharge applications
APPLICATION:
(1) Sewage Pumping Stations
(2) Sewage Treatment Plants
(3) Septic Tanks
(4) Collecting and Setting Pumps
(5) Flood and Emergency
(6) Anywhere drainage of dirty water with rags mixed in
|
MODEL |
HP |
DISCHARGE (in) |
MAX HEAD |
MAX CAPACITY |
PHASE |
S-1021P |
1 |
2" |
15 M / 49 FT |
0.35 M3/MIN, 92.4 GPM |
1 |
S-2031P |
2 |
3" |
18.5 M / 61 FT |
0.75 M3/MIN, 198 GPM |
1 |
S-3031P |
3 |
3" |
21 M / 69 FT |
1 M3/MIN, 264 GPM |
1 |
S-3033P |
3 |
3" |
21 M / 69 FT |
1 M3/MIN, 264 GPM |
3 |
|
|
HIGH HEAD PUMP
APPLICATION:
(1) Agricultural Irrigation and Water Supply in Slope area
(2) Shallow Well
(3) Water Supplying System for apartment buildings
(4) Spraying of yard and garden
(5) Any kind of high head water supply
|
MODEL |
HP |
DISCHARGE (in) |
MAX HEAD |
MAX CAPACITY |
PHASE |
D-3031H |
3 |
3" |
36 M / 118 FT |
0.67 M3/MIN, GPM |
1 |
|
