SPECIFICATION / DESCRIPTION |
 |
CASSAVA GRANULATOR/SHREDDER
- 2.0 - 2.5 tons per hour capacity
- 5 HP Engine Drive
- Portable Engine Drive
- Heavy duty hard faced and horizontal rotary and stationary cutting knives
- Replaceable Granulating Screens to suit processing size
- Agricultural Machinery Testing Evaluation Center (AMTEC) Tested
|
|

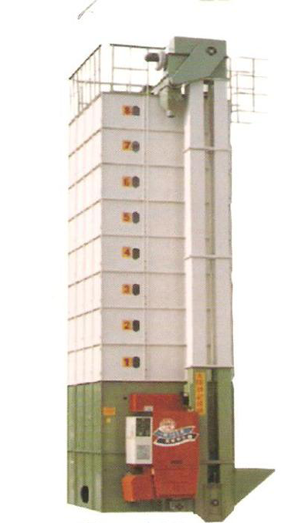

CIRCULATING DRYER
V Model: 6 ~ 12 Tons
CL 423V120
Capacity: 12 Tons
Height: 8165 mm
|
|

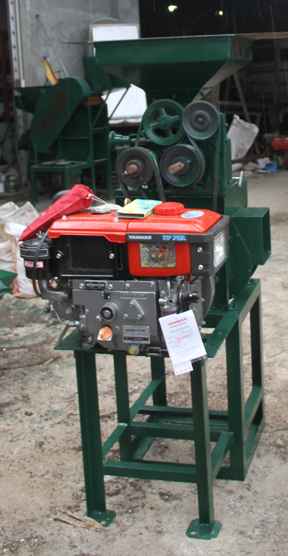

COFFEE DEHULLER
• Capacity: 500 kgs. per hour
• Powered by 7 HP Diesel Engine
• Movable
• Complete with accessories
|
|

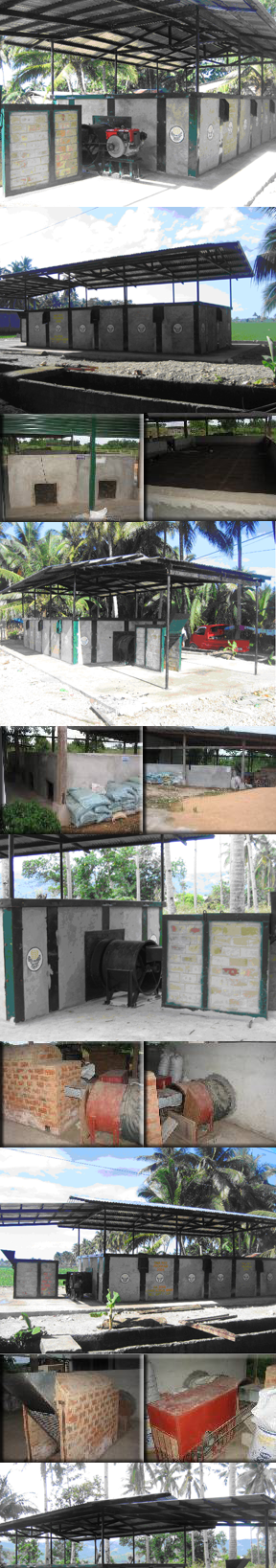

FLATBED DRYER
BPRE MODIFIED FLATBED DRYING SYSTEM WITH MOISTURE METER AND FLATBED DRYER MINIMUM SPECIFICATION OF COMPONENT PARTS |
TECHNICAL SPECIFICATIONS |
Drying Bin |
-
Made of concrete that can withstand 3,000 psi.
- Panelized concrete walling with metal connectors of 3mm thick.
- Concrete made of Class “A” mixture with re bars of not less than 8mm diameters using Portland Cement
- Minimum panel thickness of 38.1mm with metal molding/framing on all edges with engraved prescribed label and logo
- Inside dimension of drying bin: width = 12.0ft, length = 24ft.
- Total bin height of 1500mm
- Height of plenum – 1040mm
- Grain holding depth of 460mm with gauge 22 metal perforated floor having 2.38mm diameter perforation (about 3/32 inch) complete with bagging ports.
- Adequately supported with frames and braces to withstand a 6 – tons of grains load
- Equipped with heavy duty dial and probe type thermometer range: 0 – 100C, probe length not less than 4”
- Concrete flooring dimension, L = 30’ , W = 18’ , T = 3’ reinforced with 10mm diameter deformed bar spaced at 3’ along length and breadth.
|
Furnace |
- Total knockdown panelized construction framed by heavy gauge metal / steel materials
- Panel made of materials with appropriate insulating an refractory properties
- Panel thickness not less than 38.1mm, properly reinforced
- Step grate furnace design with inclination of 45 degrees from the horizontal and grate area of 530mm x 840mm
- Step grate furnace element made of MS flat bar width of 2” (50.2mm) and thickness of ¼” (6.35mm) spaced 11.0 on ceter
- Complete with feeding hopper with shutter valve.
- Provided with 2 mid baffles panels spaced 8” on centers with area opening adequate for flue gas exit.
|
Shed |
- With 8 pipe post having 1.2 meters height mounted on top of the bin panel all bolted construction.
- Truss/rafters and purlins made of metal sheet with 1.2mm thickness.
- G.I. sheet roofing of GA # 26 properly secured with standard G.I. roofing tie wire.
|
Blower and Engine |
- Axial blower with airflow capacity of 10,000 CFM at 25mm water static pressure.
- Driven by 12.0Hp diesel engine, water cooled, single cylinder type, manual/hand cracked starting.
- Diameter of blower housing = 30 inches (762mm of shed metal construction of GA # 16).
- Length of housing = 25 inches
- Dynamically balanced with appropriate bearing and shafting.
- With built-in engine mounting
- Agricultural Machinery Testing Evaluation Center (AMTEC) Tested.
|
Moisture Meter |
- NANOMAX – Nano Moisture meter
|
AMTEC (Agricultural Machinery Testing Evaluation Center) Tested |
|
|

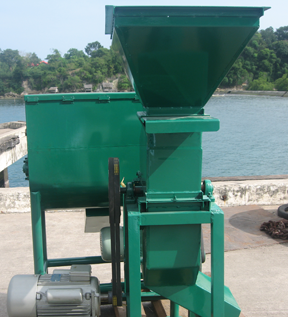

HAMMER MILL
• Capacity: 2-3 Tons
• Powered by 12.5 HP Kuvico Water-Cooled Diesel Engine
• NOTE: Raw materials should by dry at least 13 moisture MC of nthe unit
|
|

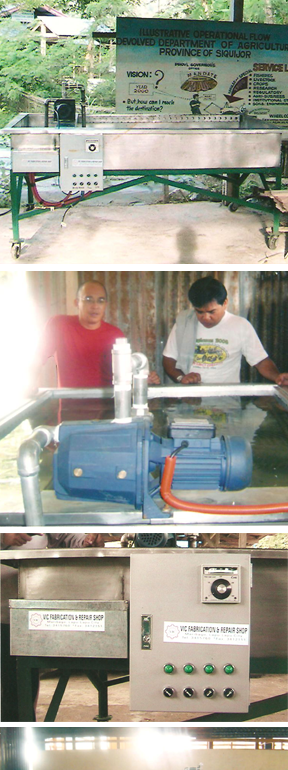

HOT WATER TANK
Capacity |
8 crates (20-25 kg. of fruit/crate) |
Body |
Stainless steel (304 food grade) |
Mild steel frame, 1hp water pump(Operation temperature up to 65 degree centigrade) |
Caster-mounted with thermostat for automatic temperature control and LPG burning system |
|
OPTIONS for Extended Hot Water Tank (EHWT) |
LPG Burner System Specifications |
- Four (4) heavy duty cast iron LPG Burner system
- Four (4) needle valves, pilot light
- Copper manifold and tubing
- High Pressure LPG regulator
|
Thermostat Specifications |
- Digital temperature controller with type-K thermocouple wire sensor in stainless steel sheath
- (positive, negative) 1 degree C accuracy
|
Data Logger Specifications |
- LCD Display, 8 ports for type J thermocouple wire sensor with mini connector with computer serial cable software (installer CD)
|
|
|

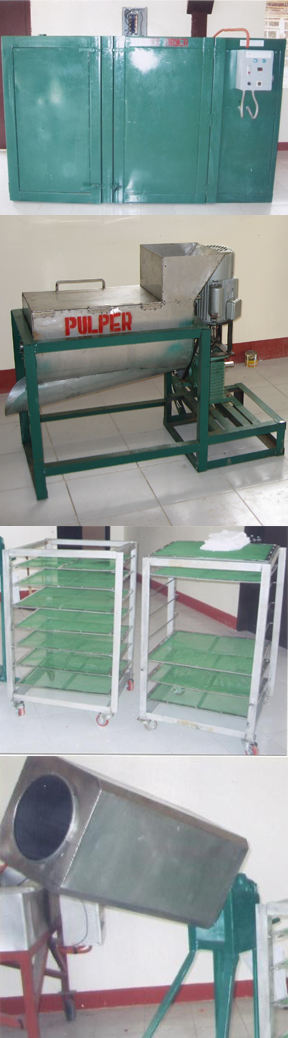

MANGO PROCESSING EQUIPMENTS
| Mango Dryer |
|
all stainless steel construction |
|
2 trays/batch (120 kgs) |
|
5" X 4" X 6" |
|
continuous drying / one chamber |
|
0 - 80 degress Celcius Maximum |
|
5 KW, 220 Volts Heaters |
|
Eletronic Thermostat |
|
Polyurethane Foam |
Included with Control Box and Operations Manual |
| |
| Mango Pulper |
Make
|
all stainless steel construction |
Drive
|
Electric Motor (220 V, Single Phase) |
| |
| Mango Pulper |
Make
|
all stainless steel construction |
Drive
|
Manual Mixing |
| |
| Mango Mixer |
Make
|
all stainless steel construction |
Drive
|
Electric Motor (220 V, Single Phase) |
Heat Source
|
LPG Heater, thermostat control |
|
|
PEANUT ROASTER
• 20 - 25 Kgs Capacity
• Stainless Steel Screen
• LPG Source of heat with speed reducer
• Complete with temporary gauge
|
|

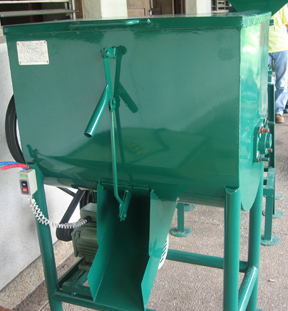

RIBBON TYPE MIXER
• with 2 HP electric motor coupled with speed reducer
• 50 - 100 kgs per batch mixing
|
